SSG

SSG, 12’ x 14’, White doors​SSG, 12’ x 14’, White doors​

  • Steel
  • Thickness: 2"
  • Color: 3 colors
  • 3 layers, polystyrene sandwich door​
  • Panel design: Light Grooves​
  • R-8.7 insulation​

IMPORTANT - These models are not available in Canada for now.

Features and benefits

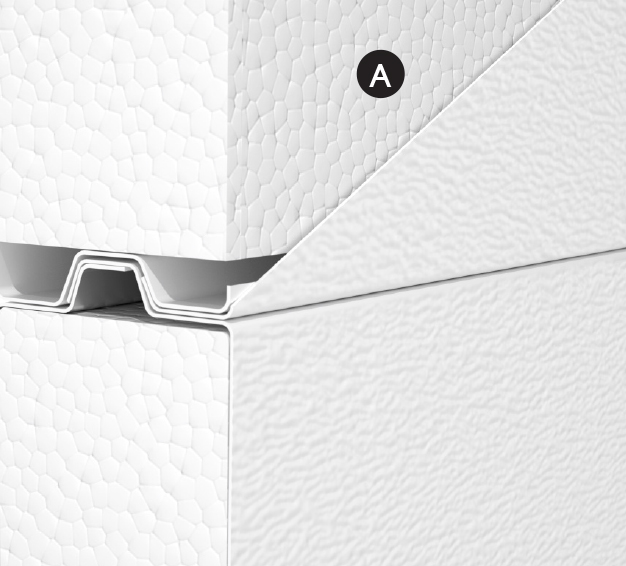

Polystyrene insulation drawing

A

Polystyrene insulation

  • CFC-free contoured polystyrene core of our sections is bonded with polyurethane reactive hot melt glue to obtain energy efficiency.
Full-length reinforcing plates drawing

B

Full-length reinforcing plates

  • 20-gauge hot dipped galvanized steel stiles running the full height of the section are attached to the interior face to ensure a more rigid section and also pre-punched with extruded holes for hinge attachment.

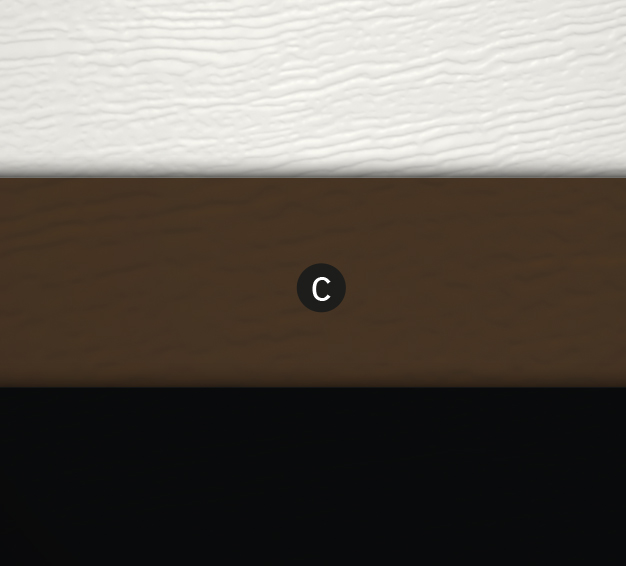

Choice of colors

C

Choice of colors

  • Beautiful light groove design is available in a choice of 3 classic colors that fit well with many building exteriors.

Man Technical Support

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

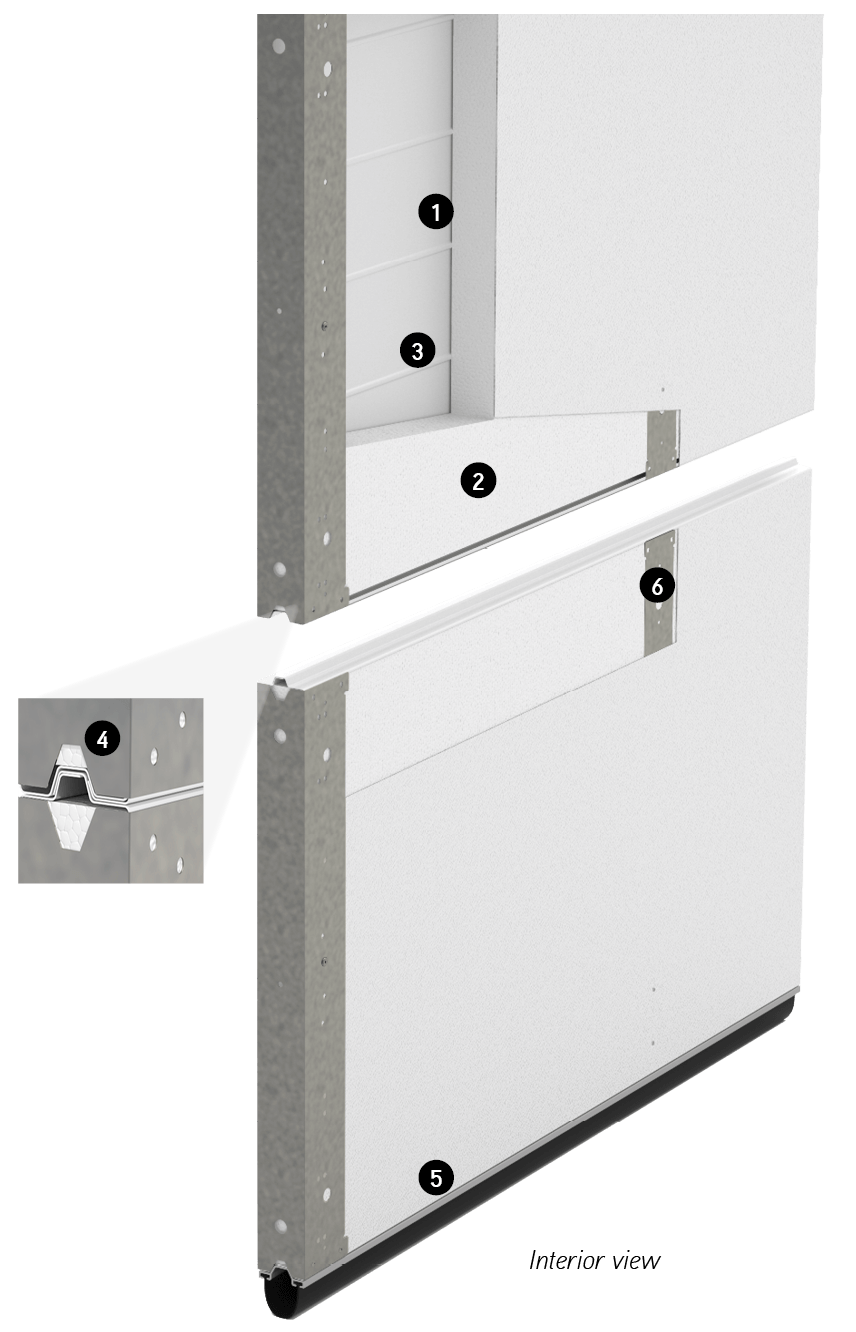

Panel construction

SSG panel construction

1

Hot-dipped galvanized steel walls

  • 25-gauge exterior and 26-gauge interior steel skin
  • Baked-on polyester paint. Can be repainted
  • Woodgrain finish on exterior side and stucco finish on interior side of the door
  • Same quality of corrosion-resistant steel for interior and exterior faces
  • Door interior: regardless of the color chosen, the inside is always White (door and window frames).

2

2” (50 mm) CFC-free continuous sculpted polystyrene board bonded between steel faces ensures a thermal-resistance rating of R-8.7 (RSI 1.7 or k=0.558 W/m2K).

3

Sections are made with ¼” (6 mm) wide grooves for a subtle finish.

4

Tongue & groove joints between sections that fit seamlessly.

5

Continuous astragal bottom weatherstripping made of U‑shaped flexible vinyl and held in place by an aluminum retainer provides additional reinforcement.

6

20-gauge full-length galvanized steel reinforcing plates placed inside the door provide a rock solid base for attaching hinges and struts.

Door weight: 1.98 lb/ft2 (9.7 kg/m2)

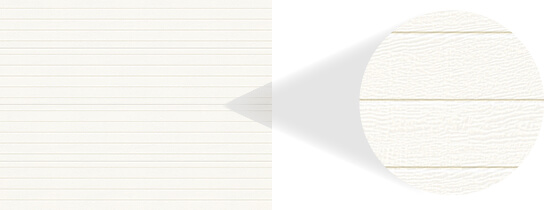

Panel design

SSG layout

Light Grooves
1⁄16” deep, ¼” wide

Sizes

Widths

In 1" (25 mm) increments

From 5' to 20'2"

(1.5 m to 6.1 m)

Heights

In 3" (76 mm) increments

From 6' to 18'

(1.8 m to 5.5 m)

Sizes

Widths

In 1" (25 mm) increments

From 5' to 20'2"

(1.5 m to 6.1 m)

Heights

In 3" (76 mm) increments

From 6' to 18'

(1.8 m to 5.5 m)

Warranty (limited)

  • 10 years against any perforation of steel due to rust
  • 1 year on other door components

Colors

White swatch

White

Brown swatch

Brown

Black Ice swatch

Black Ice

The accuracy of colors on the website may vary depending on your screen settings. To see the true colors, please contact your local Garaga dealer for a sample.

Windows

Standard windows

SSG Standard windows

Sizes

24" x 6" (610 mm x 152 mm) or

25" x 13" (635 mm x 330 mm)

Glass

  • Thermopane ½": Clear
  • Single glass 1⁄8": Clear

Frame colors

White and Black

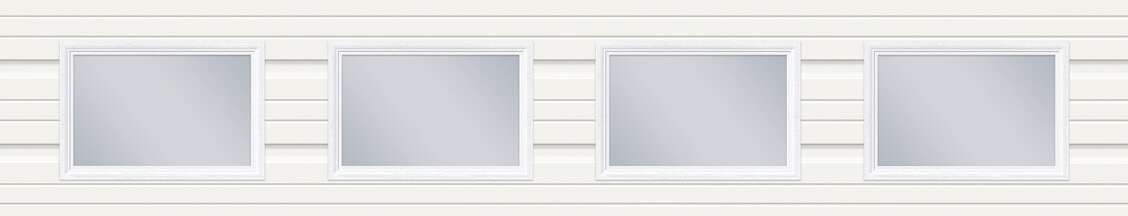

Optional - Residential windows

SSG Residential Windows

Sizes

20" x 13" (508 mm x 330 mm) or

41" x 16" (1041 mm x 406 mm)

Glass

  • Clear
  • Satin
  • Pinhead
  • Graylite 2

Frame colors

White, Brown, Black

SSG

SSG, 12’ x 14’, White doors​SSG, 12’ x 14’, White doors​

Hardware

See details with your Garaga dealer.

Document to download

Technical drawings

Revit file SSG (.rfa file)

Brochure

 SSG Flyer​

Important - Product names

  • The SSG garage door model is part of the Mid-America series.
